Specialized solutions for drying, evaporation, and crystallization

Adapted to the needs of lithium, pharmaceutical, and food-grade processing

Hebei Yanming specializes in the design and manufacture of chemical process equipment for drying, evaporation, crystallization, and solid-liquid separation. Each system is tailored to specific production needs across industries such as lithium battery materials, chemicals, pharmaceuticals, food additives, and environmental treatment.

Our chemical and battery material processing equipment can be customized to meet specific customer requirements and processing goals, ensuring optimal performance for every application.
  • Dryers
  • Evaporators

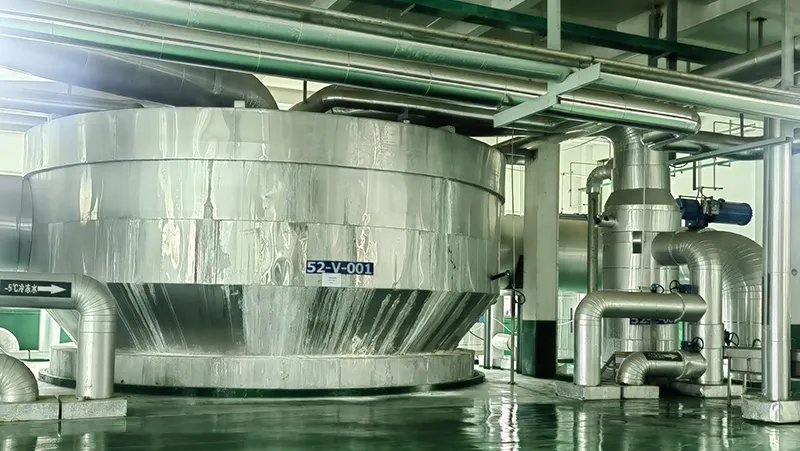

  • Crystallizers

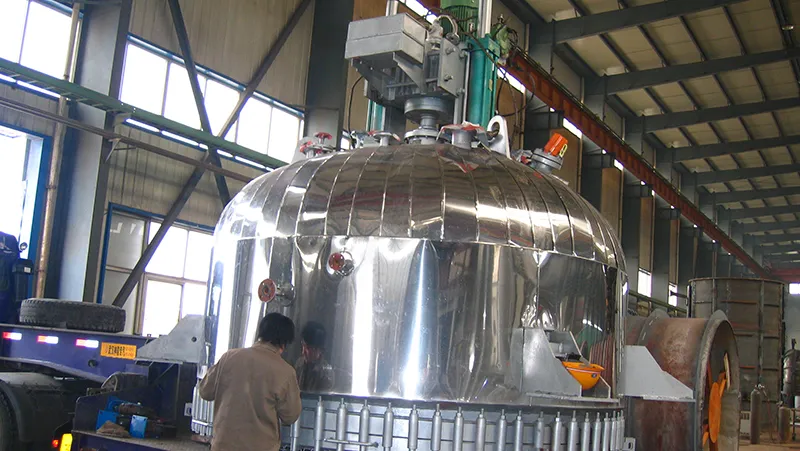

  • Filters
Dryers
Evaporators
Crystallizers & Filters

Based on operating experience, the full drying cycle, starting from material feeding to the discharge of dried products, takes 30 to 40 minutes. The exact time depends on the dryer model and rotation speed of the main shaft.

The paddle dryer is suitable for processing various materials such as pharmaceuticals, food ingredients, and chemicals. Depending on the application, the heating temperature can reach up to 400°C (750°F).

The spin flash dryer reduces the moisture content of materials by bringing them into direct contact with heated gas, enabling rapid drying of pastes, slurries, and filter cakes.

A standard fluidized bed relies solely on air velocity to suspend and move materials through the evaporator. In contrast, a vibrating fluidized bed uses mechanical vibration to assist material movement, improving flow consistency and control, especially for challenging or sticky materials.

The compressor pressurizes the secondary vapor generated during evaporation, increasing its temperature, pressure, and enthalpy. This upgraded vapor is then reused as the heat source for continued evaporation, significantly improving energy efficiency.

Yes, the rising film evaporators are well-suited for vacuum operation, which allows for lower evaporation temperatures, higher efficiency, and reduced fouling or scaling. Under atmospheric pressure, vapor velocity at the tube outlet should be maintained at 20–50 m/s, while in vacuum conditions, it can reach 100–160 m/s for enhanced performance.

Falling film evaporators are suitable for a wide range of applications, including:

  • Heat-sensitive materials
  • Moderate to high-viscosity liquids
  • Chemical solutions
  • Wastewater treatment
  • Seawater desalination
Turnkey Solutions
Drying, Evaporation & Crystallization

Our end-to-end processing systems integrate thermal, crystallization, and separation technologies to serve a wide range of industries. Whether in battery material purification, chemical production, or food processing, we deliver complete, adaptable process solutions.

Looking for support with drying, evaporation, or crystallization equipment?

Our team is ready to help.
