Industrial Drying Solutions

Lithium Chloride Drying System

We provide industrial drying solutions for the moisture control of lithium chloride (LiCl) after a centrifugal separation process

Lithium Chloride Drying System

Industrial Drying Solutions

Lithium Chloride Drying System

We provide industrial drying solutions for the moisture control of lithium chloride (LiCl) after a centrifugal separation process
Specialized Drying Process

Drying Conditions and Considerations for LiCl

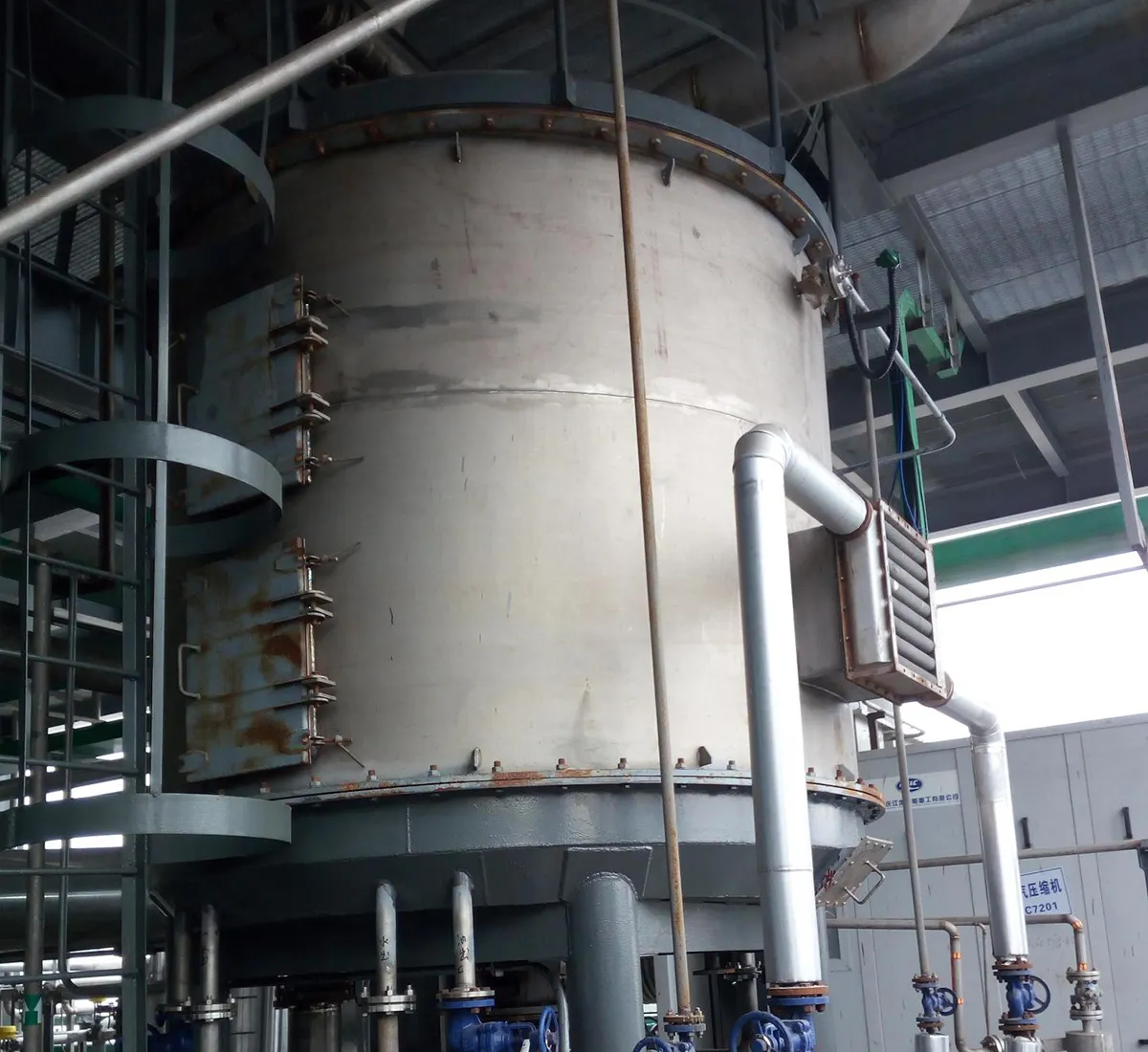

Drying lithium chloride comes with a few challenges, mainly due to its high solubility in water and its tendency to form crusts during the process. These factors make it harder for moisture to be removed through conventional drying methods. Once anhydrous lithium chloride is separated by centrifuge, a screw feeder delivers the material in a controlled and continuous flow into a rotary tray dryer designed for efficient thermal processing. As the material moves through the trays, heat and mass transfer occur simultaneously, allowing the product to dry gradually and evenly.

Once the target moisture level is reached, the dried material is cooled to packaging temperature, typically around 40–60°C, within the same unit. It is then discharged through a bottom outlet and transferred to the packaging section. Exhaust air containing residual moisture is vented through the top of the dryer and passes through a dust removal system before being released.

Contact Us
Process Workflow
Drying Process Features
  • The lithium chloride drying system runs continuously and maintains thermal efficiency above 85%, making it suitable for stable, large-scale production.
  • More than 99.9% of powder can be recovered during operation, helping to reduce material loss and keep the work environment clean.
  • Special rotating arms are used to prevent the material from sticking to the drying trays, keeping the process smooth and consistent.
  • Each tray can be set to heat or cool independently. This allows drying and cooling to happen in the same unit, with better control over the product temperature.
  • A built-in crushing device is added inside the dryer to break small clumps into powder, which improves heat transfer and makes the final product more uniform.
  • Since lithium chloride has a high boiling point at normal pressure, the drying system uses high-temperature thermal oil to speed up the drying process, usually completed in about 30 minutes, while also reducing equipment costs.
  • Three different types of titanium are used in the dryer structure to resist chloride corrosion, ensure long-term durability, and keep the equipment design practical and cost-efficient.
Recommended Equipment
    1. Rotary Tray Dryer
    2. Rotary Tray Dryer
      Drying area 3.3-168m²
      Power 1.1-18.5kW
      The rotary tray dryer is a highly efficient continuous conductive dryer utilizing an indirect heating system, designed for uniform moisture removal from powders and granules. We offer this industrial drying equipment in various configurations, including atmospheric, sealed, vacuum, and positive pressure types, to suit a wide range of drying requirements. View Details
Looking for the right process equipment?

From dryers and evaporators to crystallizers and turnkey systems, our team is ready to help you move forward with the right solution.

Email: 13933883976@163.com
Process Equipment
Drying Equipment

Drying is a thermal process used to remove moisture or solvents from solid or semi-solid materials, reducing their content to a controlled level for the next stage of production. In high-precision industries such as lithium-ion battery material production, pharmaceuticals, and fine chemicals, where consistency and reliability are critical, effective drying directly impacts product quality, handling efficiency, and process stability.

Our Drying Equipment
    1. Paddle Dryer
    2. Paddle Dryer The paddle dryer is a horizontal, indirect heating dryer with integrated agitation, designed for drying, heating, cooling, crystallization, and thermal reactions of pastes, sludges, powders, and granules.
    1. Spin Flash Dryer
    2. Spin Flash Dryer The spin flash dryer is a vertical drying system equipped with a built-in rotating disperser, combining the functions of fluidized bed drying and airflow drying in a single unit.
    1. Fluid Bed Dryer
    2. Fluid Bed Dryer The fluid bed dryer applies mechanical vibration to a conventional fluidized bed system, improving material movement and heat exchange efficiency.
    1. Vertical Ribbon Vacuum Dryer
    2. Vertical Ribbon Vacuum Dryer The vertical ribbon vacuum dryer is a conductive vacuum drying system designed for efficient, low-temperature drying of moisture-sensitive materials.
