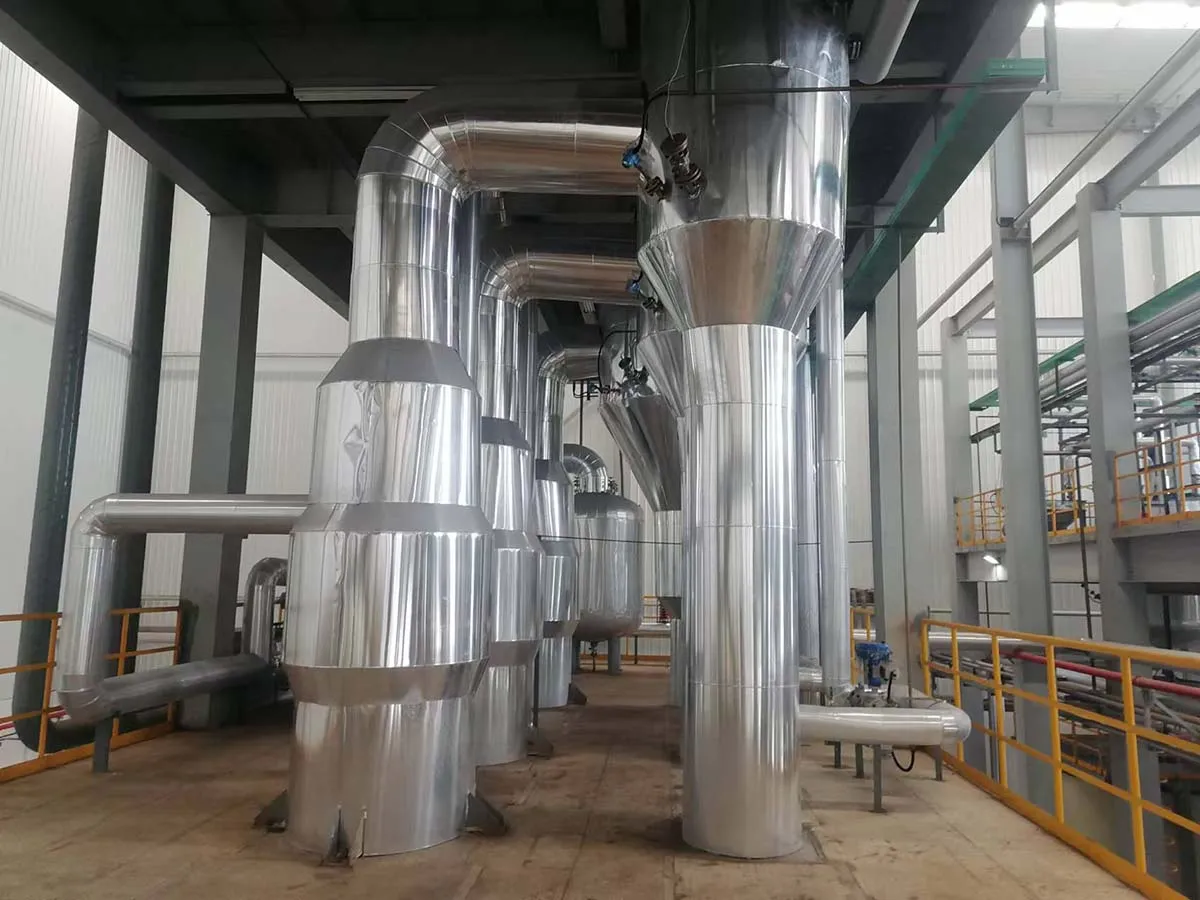

Nickel Sulfate Evaporation and Crystallization System

We provide NiSO₄ evaporation and crystallization solutions for producing main nickel salt for electroplating and chemical nickel plating

Nickel Sulfate Evaporation and Crystallization System

Industrial Evaporation & Crystallization Solutions

Nickel Sulfate Evaporation and Crystallization System

We provide NiSO₄ evaporation and crystallization solutions for producing main nickel salt for electroplating and chemical nickel plating
Physical Properties and Applications of Nickel Sulfate

Nickel sulfate is a widely used nickel salt in the electroplating and electroless plating industries. It serves as the primary source of nickel ions in these processes, allowing the release of Ni²⁺ and SO₄²⁻ ions essential for metal deposition.

Nickel sulfate solution has a relatively low boiling point elevation and its solubility changes significantly with temperature, making it suitable for evaporation and crystallization processes. To obtain nickel sulfate hexahydrate (NiSO₄·6H₂O), the solution is first concentrated through either multi-effect evaporation or MVR evaporation, depending on energy cost and scale. The concentrated liquid is then cooled to form crystals, using either a batch crystallizer or a continuous system, depending on production needs.

Contact Us
Process Workflow
Solubility of Nickel Sulfate at Different Temperatures
Temperature (°C) 0 10 20 30 40 50 60 70 80 90 100
Solubility (g/100g water) 28.1 33 38.4 44.1 48.2 52.8 56.9 61 66.7 68 69
Recommended Equipment
    1. MVR Evaporator
    2. MVR Evaporator
      Evaporation capacity 500kg/h-60t/h
      Evaporation temperature 40-100℃
      The MVR evaporator is an advanced energy-efficient evaporation system that recycles its own secondary steam to reduce reliance on external energy sources. It compresses and reuses vapor generated during evaporation, making full use of latent heat from secondary steam and condensate within the evaporation system. View Details
Looking for the right process equipment?

From dryers and evaporators to crystallizers and turnkey systems, our team is ready to help you move forward with the right solution.

Email: 13933883976@163.com
Process Equipment
Evaporators Equipment

We provide advanced evaporation and crystallization systems designed for efficient separation, purification, and recovery of valuable compounds in lithium battery material processing and recycling. Evaporation crystallization is a widely used chemical separation technique that relies on the difference in solubility of substances at varying temperatures.

Our Evaporators Equipment
    1. Rising Film Evaporator
    2. Rising Film Evaporator The rising film evaporator is designed for high-throughput evaporation and efficient heat transfer by utilizing the rapid upward flow of liquid and vapor within vertical heating tubes.
    1. Falling Film Evaporator
    2. Falling Film Evaporator The falling film evaporator is a high-efficiency, non-circulating evaporator designed for the gentle and continuous evaporation of liquids.
    1. Forced Circulation Evaporator
    2. Forced Circulation Evaporator The forced circulation evaporator is designed to enhance the flow velocity of liquid solutions by using an external circulation pump, ensuring efficient heat transfer and minimizing fouling or scaling.
    1. Natural Circulation Evaporator
    2. Natural Circulation Evaporator The natural circulation evaporator relies on density differences in the liquid to drive circulation, without the use of external pumps.
    1. Wiped Film Evaporator
    2. Wiped Film Evaporator This design enables rapid evaporation or distillation, even for heat-sensitive, viscous, or fouling-prone materials.
